Assignment 3: Basin-scale flows and waves

Assignment 3: Basin-scale flows and waves#

For this assignment you will do quantiative analysis of the basin flow (see Assignment 2: Wind-driven channel flow and basin-scale flow), and a qualitative analysis of planetary-scale waves in a basin.

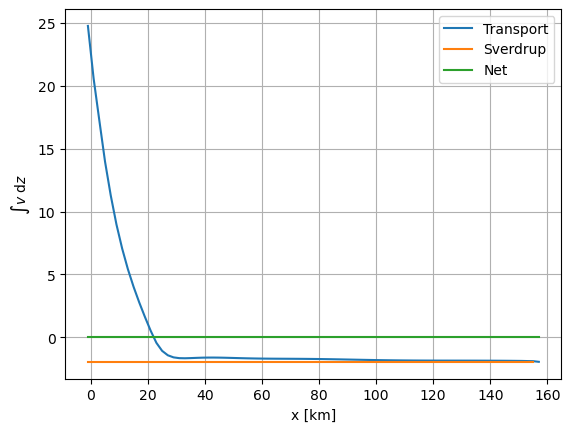

Q1.2 Sverdrup transport#

Fro the beta plane, calculate the vertically integrated transport across the middle latitude as a function of x, and compare to the Sverdrup transport.

with xr.open_dataset('basinbetaplane.snapshot.nc') as ds:
    ds = ds.isel(Time=-1)
    fig, ax = plt.subplots()
    trans = ds.v.isel(yu=40).sum(dim='zt')*10
    ax.plot(ds.xt, ds.v.isel(yu=40).sum(dim='zt')*10, label=f'Transport')
    ax.grid('on')
    # the sverdrup transport is -(1/rho) dtau/dy / \beta
    Sverdrup = -ds.surface_taux.differentiate(coord='yt').isel(yt=40) / 1e-9 / 1000 / 1000
    print(Sverdrup)
    ax.plot(ds.xt, Sverdrup, label='Sverdrup')
    ax.plot(ds.xt, 0*ds.xt + ds.v.isel(yu=40).sum(dim='zt').mean(dim='xt')*10, label=f'Net')
    ax.legend()
    ax.set_xlabel('x [km]')
    ax.set_ylabel(r'$\int v\ \mathrm{d}z$')

<xarray.DataArray 'surface_taux' (xu: 80)>
array([-1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124,        nan])
Coordinates:
  * xu       (xu) float64 0.0 2.0 4.0 6.0 8.0 ... 150.0 152.0 154.0 156.0 158.0
    yt       float64 79.0
    Time     timedelta64[ns] 10 days

../../_images/d729b5b06d95988b6bd54bb10e5962ecea6f1bbd451dc267b9f7e2a5f5664fd9.png

with xr.open_dataset('basinbetaplane.snapshot.nc') as ds:
    ds = ds.isel(Time=-1)
    fig, axs = plt.subplots(1, 3)
    trans = ds.v.sum(dim='zt')*10
    pcolormesh_sym(ds.xu, ds.yt, ds.v.sum(dim='zt')*10, vbound=4, ax=axs[0])
    #ax.plot(ds.xt, ds.v.isel(yu=40).sum(dim='zt')*10, label=f'Transport')
    ax.grid('on')
    # the sverdrup transport is -(1/rho) dtau/dy / \beta
    Sverdrup = -ds.surface_taux.differentiate(coord='yt')/ 1e-9 / 1000 / 1000
    pcolormesh_sym(ds.xu, ds.yt, Sverdrup, vbound=4, ax=axs[1])
    pcolormesh_sym(ds.xu, ds.yt, ds.v.sum(dim='zt')*10 - Sverdrup.values, vbound=4, ax=axs[2])
    print(Sverdrup)
    #ax.plot(ds.xt, Sverdrup, label='Sverdrup')
    #ax.plot(ds.xt, 0*ds.xt + ds.v.isel(yu=40).sum(dim='zt').mean(dim='xt')*10, label=f'Net')
    #ax.legend()
    #ax.set_xlabel('x [km]')
    #ax.set_ylabel(r'$\int v\ \mathrm{d}z$')

<xarray.DataArray 'surface_taux' (yt: 80, xu: 80)>
array([[-0.        , -0.        , -0.        , ..., -0.        ,
        -0.        ,         nan],
       [-0.03854076, -0.03854076, -0.03854076, ..., -0.03854076,
        -0.03854076,         nan],
       [-0.11556285, -0.11556285, -0.11556285, ..., -0.11556285,
        -0.11556285,         nan],
       ...,
       [-0.26895396, -0.26895396, -0.26895396, ..., -0.26895396,
        -0.26895396,         nan],
       [-0.19240674, -0.19240674, -0.19240674, ..., -0.19240674,
        -0.19240674,         nan],
       [-0.15404418, -0.15404418, -0.15404418, ..., -0.15404418,
        -0.15404418,         nan]])
Coordinates:
  * xu       (xu) float64 0.0 2.0 4.0 6.0 8.0 ... 150.0 152.0 154.0 156.0 158.0
  * yt       (yt) float64 -1.0 1.0 3.0 5.0 7.0 ... 149.0 151.0 153.0 155.0 157.0
    Time     timedelta64[ns] 10 days

../../_images/a753ab379550086bbf9b8cb171d7954eae9eb4277db32ebbd3828b101120f0e5.png

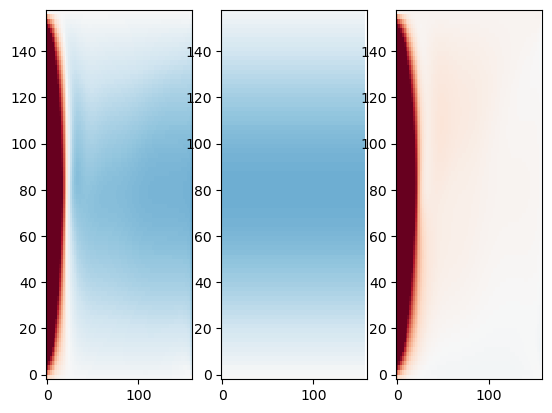

So the above shows that the Sverdrup transport is almost perfect, except on the wester side of the basin, where there is the strong return flow. Note that the net transport is zero, as one would expect.

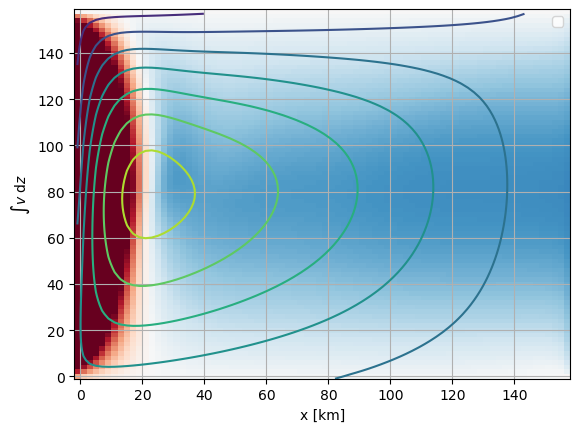

Q1.2b Now plot what this transport looks like as a function of x and y#

with xr.open_dataset('basinbetaplane.snapshot.nc') as ds:
    ds = ds.isel(Time=-1)
    fig, ax = plt.subplots()
    trans = ds.v.isel(yu=40).sum(dim='zt')*10
    pcolormesh_sym(ds.xt, ds.yu, ds.v.sum(dim='zt')*10, vbound=3)
    ax.contour(ds.xt, ds.yt, ds.psi)
    ax.grid('on')
    # the sverdrup transport is -(1/rho) dtau/dy / \beta
    Sverdrup = -ds.surface_taux.differentiate(coord='yt').isel(yt=40) / 1e-9 / 1000 / 1000
    print(Sverdrup)
    ax.legend()
    ax.set_xlabel('x [km]')
    ax.set_ylabel(r'$\int v\ \mathrm{d}z$')

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.

<xarray.DataArray 'surface_taux' (xu: 80)>
array([-1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124, -1.9626124,
       -1.9626124, -1.9626124, -1.9626124, -1.9626124,        nan])
Coordinates:
  * xu       (xu) float64 0.0 2.0 4.0 6.0 8.0 ... 150.0 152.0 154.0 156.0 158.0
    yt       float64 79.0
    Time     timedelta64[ns] 10 days

../../_images/3e877672350c2d3a7e757c753a5db186851d41271537505f44c02f1548d41c64.png

Note that this generally makes sense, with higher transport near the center where \(\frac{1}{\rho}\nabla \times \mathbf{\tau}\) is the most negative. There is some cross-channel variability, with evidence of a heightened recirculation near the return flow along the western boundary.

Q1.3 Western boundary current#

Q1.3.a#

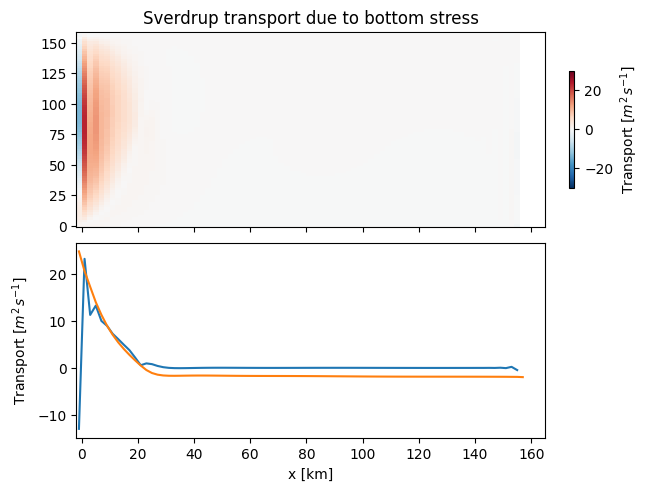

Plot the Sverdrup transport due to the north/south bottom stress, bearing in mind that it is quadratic with \(\tau_b^y/\rho = -C_D v|v|\), where \(C_D = 10^{-1}\). (This is actually an approximation - it should be \(\tau_b^y/\rho = -C_D v|\mathbf{u}|\), but the x-direction velocity is relatively modest). Compare to the volumn transport as you did above and comment.

Cd = 1e-1
with xr.open_dataset('basinbetaplane.snapshot.nc') as ds:
    ds = ds.isel(Time=-1)
    taub = -Cd * ds.v.isel(zt=0) * np.abs(ds.v.isel(zt=0))
    fig, axs = subplots_shared(2, 1, sharey=False)
    pc = pcolormesh_sym(ds.xt[:-1], ds.yu, taub.diff(dim='xt') / 2000 / 1e-9, 30, ax=axs[0])
    fig.colorbar(pc, ax=axs[0], shrink=0.6, label='Transport $[m^2\,s^{-1}]$')
    ax = axs[1]
    ax.plot(ds.xt[:-1], taub.diff(dim='xt')[40, :] / 2000 / 1e-9)
    ax.plot(ds.xt, ds.v.isel(yu=40).sum(dim='zt')*10, label=f'Transport')

ax.set_xlabel('x [km]')
ax.set_ylabel('Transport $[m^2\,s^{-1}]$')
axs[0].set_title('Sverdrup transport due to bottom stress')

Text(0.5, 1.0, 'Sverdrup transport due to bottom stress')

../../_images/9cfee180cfdcc9386d8795d98c2b68548a8aae8df2e55b13ac8d2ed254fc3c06.png

Clearly the transport due to the bottom torque almost balances the transport, and adding the interior transport due to the wind stress will give the total transport..

Q1.3.b if return current on other side?#

Comment on the sense of torque if the return current were on the other side of the basin?

The velocity gradient will be with strongest northward flow to the east, so the bottom stress will increase towards the south towards the east. This is a negative torque, which will tend to drive a southward Sverdrup transport.

Q1.3.c East/west flow#

Comment on the sense of the east/west flow in the basin in relation to the net north/south flow.

If the flow is southwards everywhere except the western boundary current, then there needs to be a flow from the west to east in the north half of the basin to compensate. Water piles up in the south side of the basin due to flow convergence, so it needs to be trasnported from the east to west.

Q2 Planetary waves: Qualitative#

Q2.1 Poincarre versus Kelvin waves.#

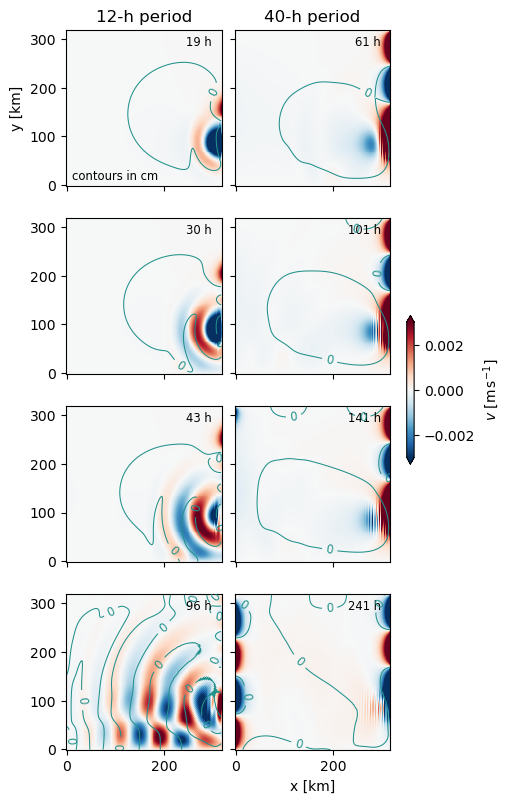

Run Poincarre12.py and Kelvin40.py. They are forced exactly the same way, by a Gaussian-shaped alternation of a wind stress at the east side of the basin. This is run in a 200-m deep ocean, with the upper 60 m at 30 degrees C, and the bottom 140 m at 10 degrees C.

Poincarre12.py is forced with a 12-h forcing period - note that the Coriolis period is \(T = \frac{2\pi}{f} = 17.45 h\), so these waves are “super-inertial”. Kelvin40.py is forced at 40 h, so these waves are sub-inertial.

Plot some time snaps of u or v near the surface. Describe the difference between the two forcings.

Note

The dominant response will be “internal waves” where the interface between the 10 and 30 degree water moves up and down. The buoyancy effect is such that these waves see a reduced gravity of \(g' \approx \frac{\delta \rho}{\rho} g \approx 0.0382 \ \mathrm{m\, s^{-2}}\).

todo = ['Poincarre12.snapshot.nc', 'Kelvin40.snapshot.nc']
times = [[18, 30, 42, -1], [60, 100, 140, -1]]

fig, axs = subplots_shared(4, 2, figsize=(5, 8))

for nn, td in enumerate(todo):
    for nt, time in enumerate(times[nn]):
        ax = axs[nt, nn]
        with xr.open_dataset(td) as ds:
            ds = ds.isel(Time=time)
            ttime = int(ds.Time.astype('float').values / 1e9 / 3600)
            levels = np.arange(-20, 20, 4)
            cont = ax.contour(ds.xt, ds.yt, ds.psi * 100, levels=levels, linewidths=0.75, vmin=-16, vmax=16)
            cs = pcolormesh_sym(ds.xt, ds.yu, ds.v.isel(zt=-2), vbound=0.003, cmap='RdBu_r', ax=ax )
            ax.set_aspect(1)
            ax.clabel(cont, levels=levels[1::2], fontsize='small')
            ax.text(0.94, 0.9, f'{ttime} h', transform=ax.transAxes, fontsize='small', ha='right')
axs[0, 0].set_title('12-h period')
axs[0, 0].text(0.04, 0.04, 'contours in cm', transform=axs[0, 0].transAxes, fontsize='small')
axs[0, 1].set_title('40-h period')
axs[0, 0].set_ylabel('y [km]')
axs[-1, -1].set_xlabel('x [km]')
fig.colorbar(cs, ax=axs, shrink=0.2, extend='both', label='$v\ \mathrm{[m\,s^{-1}]}$')

<matplotlib.colorbar.Colorbar at 0x146bf3970>

../../_images/bf4efe17f39ec68bf4151d88bb0fab838c7be7bb49f8dadf359be8ca007fbef2.png

if False:
    todo = ['Poincarre12.snapshot.nc', 'Kelvin40.snapshot.nc']
    times = [[18, 30, 42, -1], [60, 100, 140, -1]]

    with xr.open_dataset(td) as ds0:
        times = ds0.Time

    for nt, time in enumerate(times):
        fig, axs = subplots_shared(1, 2, figsize=(5, 4))
        for nn, td in enumerate(todo):
            ax = axs[nn]
            with xr.open_dataset(td) as ds:
                ds = ds.isel(Time=nt)
                ttime = int(ds.Time.astype('float').values / 1e9 / 3600)
                levels = np.arange(-20, 20, 4)
                cont = ax.contour(ds.xt, ds.yt, ds.psi * 100, levels=levels, linewidths=0.75, vmin=-16, vmax=16)
                cs = pcolormesh_sym(ds.xt, ds.yu, ds.v.isel(zt=-2), vbound=0.003, cmap='RdBu_r', ax=ax )
                ax.set_aspect(1)
                #ax.clabel(cont, levels=levels[1::2], fontsize='small')
                ax.text(0.94, 0.9, f'{ttime} h', transform=ax.transAxes, fontsize='small', ha='right')
        axs[0].set_title('12-h period')
        axs[1].set_title('40-h period')
        axs[0].set_ylabel('y [km]')
        axs[-1].set_xlabel('x [km]')
        fig.colorbar(cs, ax=axs, shrink=0.2, extend='both', label='$v\ \mathrm{[m\,s^{-1}]}$')
        fig.savefig(f'KW{nt:04d}.png', dpi=100)
        plt.close('all')

Both flows demonstrate waves propaagating along the side walls. However, the super-inertial flow also has a flow that propagates across the basin. The wall-trapped waves are Kelvin waves and the propagating waves are Poincarre waves. If the forcing is sub-inertial, free waves are not a possible solution.

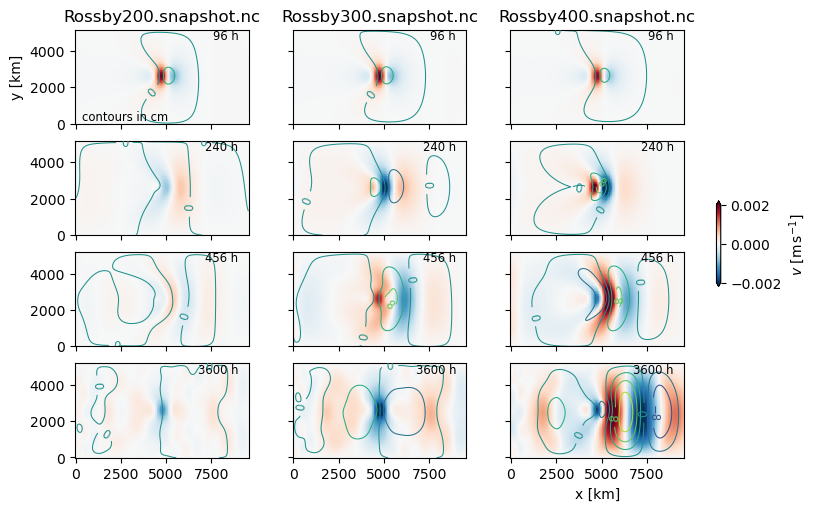

Q2.2 Rossby waves#

Run Rossby200.py, Rossby300.py, Rossby400.py. These simulations are substantially larger, and have no temperature stratification - the waves excited are on the surface rather than an interface. If the forcing is slow and large scale, we generate Rossby waves. Here the wave maker is in the middle of the basin rather than along an edge.

Compare the response of these three simulations at a few time steps

todo = ['Rossby200.snapshot.nc', 'Rossby300.snapshot.nc', 'Rossby400.snapshot.nc']
times = [[3, 9, 18, -1], [3, 9, 18, -1], [3, 9, 18, -1] ]
vbound = [0.0005, 0.01, 0.01]

fig, axs = subplots_shared(4, 3, figsize=(8, 5))

for nn, td in enumerate(todo):
    for nt, time in enumerate(times[nn]):
        ax = axs[nt, nn]
        with xr.open_dataset(td) as ds:
            ds = ds.isel(Time=time)
            ttime = int(ds.Time.astype('float').values / 1e9 / 3600)
            levels = np.arange(-20, 20, 4)
            cont = ax.contour(ds.xt, ds.yt, ds.psi * 100, levels=levels, linewidths=0.75, vmin=-16, vmax=16)
            cs = pcolormesh_sym(ds.xt, ds.yu, ds.v.isel(zt=-2), vbound=0.002, cmap='RdBu_r', ax=ax )
            ax.set_aspect(1)
            ax.clabel(cont, levels=levels[1::2], fontsize='small')
            ax.text(0.94, 0.9, f'{ttime} h', transform=ax.transAxes, fontsize='small', ha='right')
            if nt == 0:
                ax.set_title(td)
#axs[0, 0].set_title('f-plane')
axs[0, 0].text(0.04, 0.04, 'contours in cm', transform=axs[0, 0].transAxes, fontsize='small')
#axs[0, 1].set_title('$\\beta$-plane')
axs[0, 0].set_ylabel('y [km]')
axs[-1, -1].set_xlabel('x [km]')
fig.colorbar(cs, ax=axs, shrink=0.2, extend='both', label='$v\ \mathrm{[m\,s^{-1}]}$')

<matplotlib.colorbar.Colorbar at 0x145eea730>

../../_images/336b64bd2cae8a0ef101f3ec8b8c0a1143731a540486dbca024271e97cc3c116.png

There is clearly wave energy radiating to the east in these simulations, but also a weaker forcing to the west. The 200-h period simulation has a much weaker response than the other two, which we will see is due to the forcing being shorter period than the minimum period allowable for Rossby waves - what gets excited is really a harmonic at 400 h.

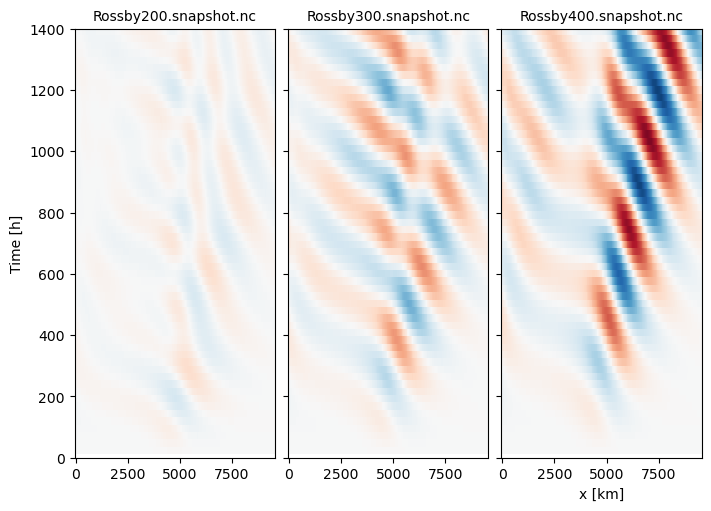

Q2.2b Hovmoller#

Its a little hard to see the wave propagation in the above because the waves are so long relative to the basin size. Plot each simulation using a Hovmoller diagram, probably at the middle value of y (.isel(yt=35, yu=35)).

Try to interpret this - consider two things - phase speeds are set by the slope of the alternating bands. Group speed, which is the speed energy is propagating, is set by the slope of increasing amplitude of the waves. Try to pick these features out of the Hovmoller diagrams.

todo = ['Rossby200.snapshot.nc', 'Rossby300.snapshot.nc', 'Rossby400.snapshot.nc']
fig, axs = subplots_shared(1, 3, figsize=(7, 5))

for nn, td in enumerate(todo):
    ax = axs[nn]
    with xr.open_dataset(td) as ds:
        ds = ds.isel(yt=35, yu=35, zt=-2, zw=-2)
        time = tohours(ds.Time)
        pcolormesh_sym(ds.xt, time, ds.v, vbound=0.002, ax=ax)
        ax.set_ylim([0, 1400])
        ax.set_title(td, fontsize='medium')
axs[-1].set_xlabel('x [km]')
axs[0].set_ylabel('Time [h]')

Text(0, 0.5, 'Time [h]')

../../_images/2df9b804f497f3401387013a754f87fa6d4237397f64f110290584059267859b.png

The 400-h and 300-h simulations are the clearest. Wave energy is clearly propagaing to the east. But the phase lines are propagating to the west.

To the west of the wave source, the phase velocity is slow to the west, and then it becomes faster to the west. This is somewhat confusing, but is due to a reflection from the western wall. The initial waves to the west, with the lower slope have much longer horizontal wavelengths than the waves propagating to the east.

Make movies#

If False:
    todo = ['Rossby200.snapshot.nc', 'Rossby300.snapshot.nc', 'Rossby400.snapshot.nc']
    times = [[3, 9, 18, -1], [3, 9, 18, -1], [3, 9, 18, -1] ]
    vbound = [0.0005, 0.01, 0.01]


    ds0 = xr.open_dataset(todo[0])
    for nt, time in enumerate(ds0.Time):
        fig, axs = subplots_shared(1, 3, figsize=(9, 3))
        for nn, td in enumerate(todo):
            ax = axs[nn]
            with xr.open_dataset(td) as ds0:
                ds = ds0.isel(Time=nt)
                ttime = int(ds.Time.astype('float').values / 1e9 / 3600)
                levels = np.arange(-20, 20, 4)
                cont = ax.contour(ds.xt, ds.yt, ds.psi * 100, levels=levels, linewidths=0.75, vmin=-16, vmax=16)
                cs = pcolormesh_sym(ds.xt, ds.yu, ds.v.isel(zt=-2), vbound=0.002, cmap='RdBu_r', ax=ax )
                ax.set_aspect(1)
                # ax.clabel(cont, levels=levels[1::2], fontsize='small')
                ax.text(0.94, 0.9, f'{ttime} h', transform=ax.transAxes, fontsize='small', ha='right')
        #axs[0, 0].set_title('f-plane')
        axs[0].text(0.04, 0.04, 'contours in cm', transform=axs[0].transAxes, fontsize='small')
        #axs[0, 1].set_title('$\\beta$-plane')
        axs[0].set_ylabel('y [km]')
        axs[-1].set_xlabel('x [km]')
        fig.colorbar(cs, ax=axs, shrink=0.2, extend='both', label='$v\ \mathrm{[m\,s^{-1}]}$')
        fig.savefig(f'Snapshot{nt:04d}.png', dpi=100)
        plt.close('all')
        fig.clear()
        del fig

  Cell In[13], line 1
    If False:
       ^
SyntaxError: invalid syntax

Assignment 3: Basin-scale flows and waves

Contents

Assignment 3: Basin-scale flows and waves#

Q1.1 Ekman pumping#

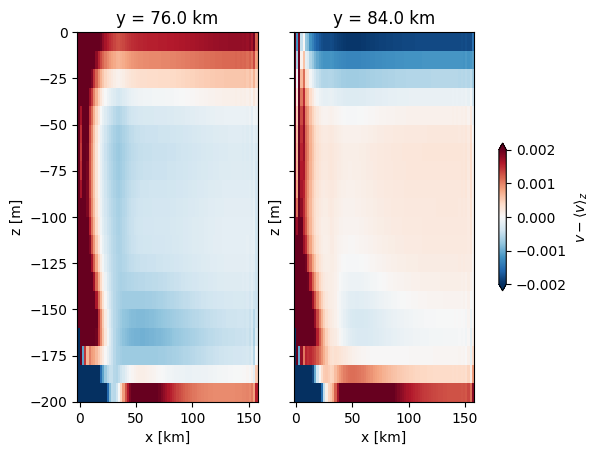

Q1.1.a Determine depth of Ekman layer#

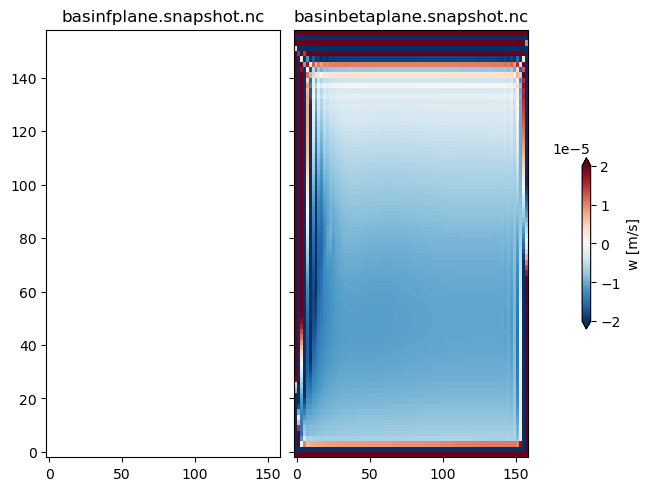

Q1.1b Vertical velocity.#

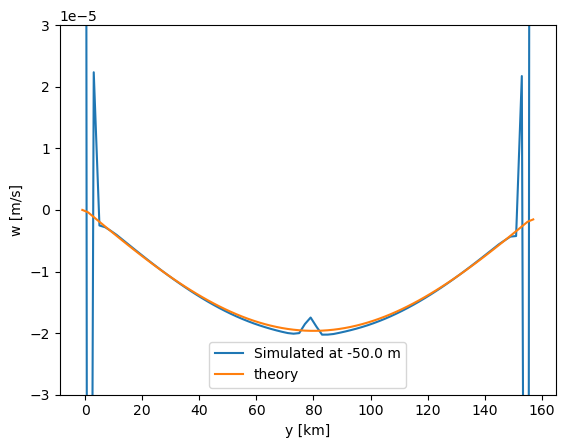

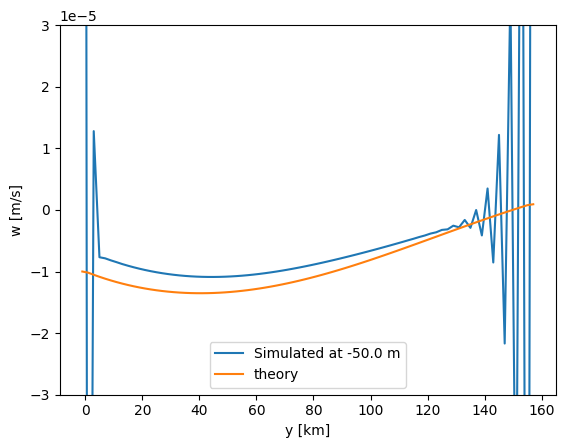

Q1.1c Compare w/ Ekman Pumping#
